9 Inch AI PROXIMITY WARNING ALERT SYSTEM

RVM-9003BSD Features:

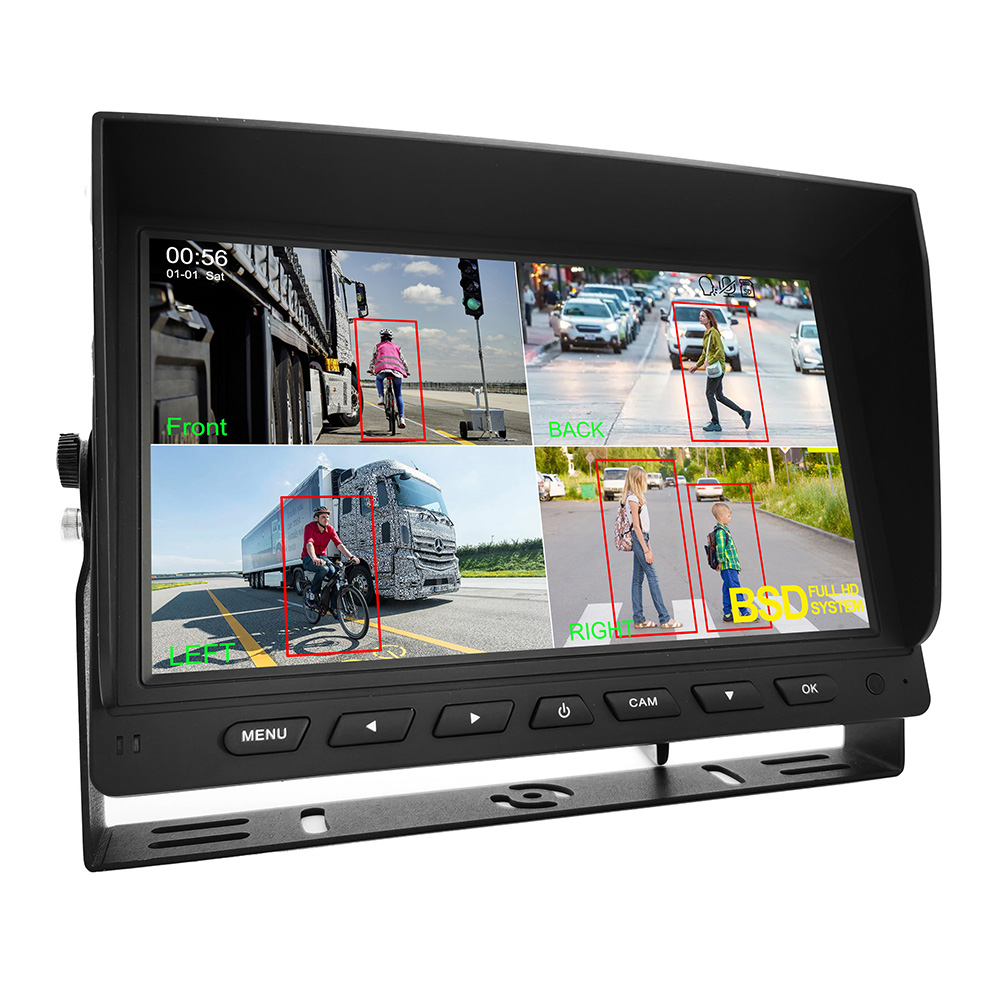

9 Inch Car AHD DVR Quad Monitor with Blind Spot Detection Warning System(BSD)

Screen Ratio:16:9

High Resolution:1024*R.G.B*600

Back Light Luminance:500cd/㎡

4 Channel AHD video input,Full  images, support AHD720P Video Input

4-way trigger function, trigger priority: CH2 > CH1 > CH3 > CH4

With Removable Sunshade design, With Metal U Shape Bracket

Built-in lightning protection device; Monitor with reverse polarity protects;

Video storage: SD high-speed card for video storage, minimum 16GB, maximum128GB, card speed not less than 10M/S

Video compression format:H.264 compression mode

It supports four channels of video recording at the same time, and the video recording is stored into four independent files

Supports fast photography, supports replay previous videos and images. It supports  pause, fast forward, fast backward and other operations.

Video files can be locked for protection. Locked files will not be overwritten and deleted.

Storage card supports overlay deletion automatically and manual delete

Bulit-in Speaker

Power consumption: ＜ 5W

OSD menu, remote control

Compatible system:NTSC & PAL (automatically)

Power Supply: Input Power: DC12V-36V, Output Power: DC12V

4-PIN connector for special camera

Size: 230*155*27mm

Accessories: Remote controller, Power supply cable , User manual, Bracket

Camera: 4pcs 200W Pixel AHD 1080P Camera

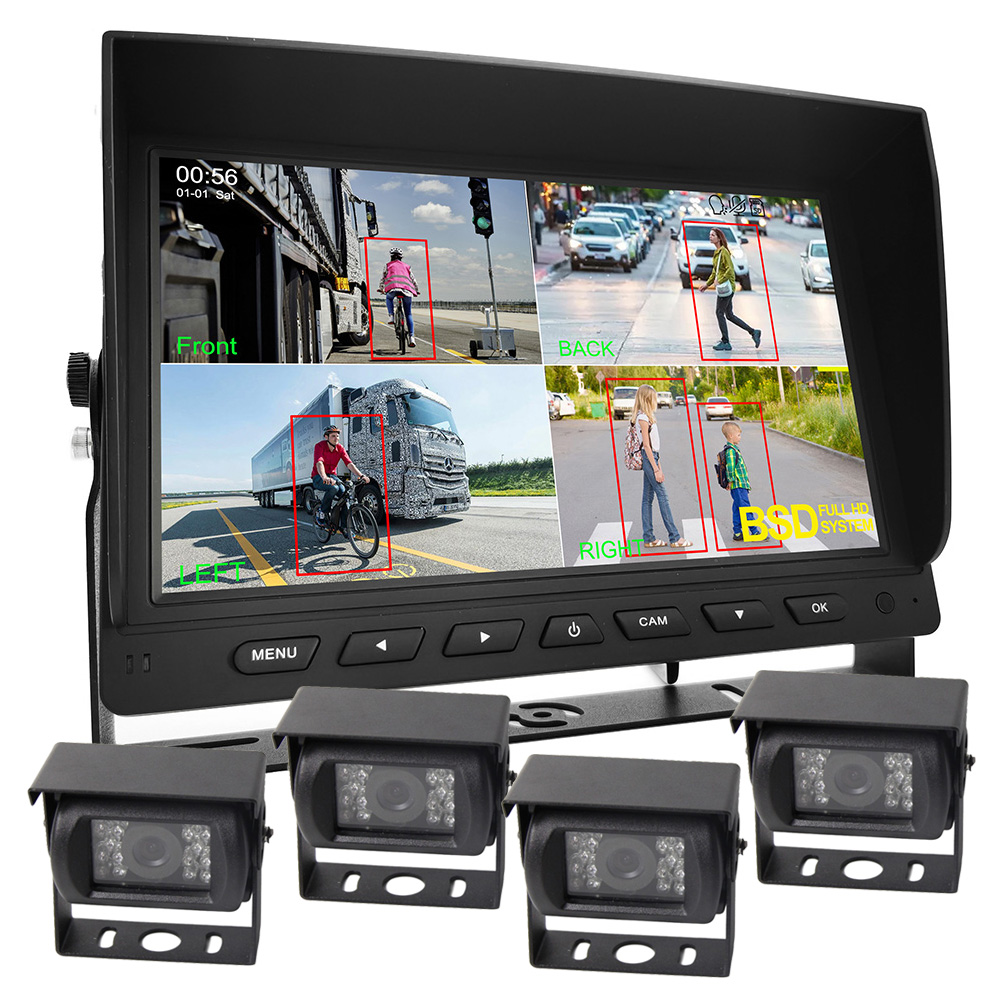

Including 1pcs 9 Inch BSD Monitor+4pcs 1080P rear camera+3pcs 5m cable+1pc 20m cable
