7″ IP69K Waterproof Monitor & AHD 1080P Camera Kit 7″ IP69K Waterproof Monitor & AHD 1080P Camera Kit
Name:7″ IP69K Waterproof Monitor & AHD 1080P Camera Kit
Model No.:RVM-7032AHD
Monitor:7 Inch IP69K Waterproof AHD Monitor
Camera:AHD 1080P Camera, Night Vision, Waterproof
Cable:20M Extension cable with 4-PIN
Emark Certification:Available

Key Features:

DC12V-36V 7″ IP69K Waterproof Monitor & AHD 1080P Camera Kit

RVM-7032AHD Monitor Specification:

7 Inches IP69K waterproof rearview monitor (Detachable sunshade)

Aspect ratio: 16:9 Wide Screen

Back Light Luminance: LED, 500cd/㎡

Resolution: 1024xRGBx600

3 way AHD video input

Single Image Display, Video Compatibility: CVBS/ AHD;

3 Ways trigger :V2>V1>V3(Automatically switch to V2 when reversing)

Dustproof & Waterproof level: IP69K

Built-in light sensor, adjustment screen brightness automatically

Compatible system: NTSC & PAL (automatically)

OSD Language: English, Chinese

View angle: Hor. L(85°) R(85°)   Ver. UP(85°) DOWN(85°)

Power Supply: Input power: DC12V-36V, Output power: DC12V

Power consumption: 5W

Material: Metal

Storage temperature:-30℃ to 80℃

Working temperature:-20℃ to 70℃

Shock Resistance: 5.9G

Product Size:188x127.2x34 mm

Accessories: Remote controller, Power supply cable, User manual, Bracket

Connector: 4-Pin Connector/RCA Connector optional


DC12V Truck AHD Rear Camera

1/3” AHD CMOS,1080P,200W,0.01Lux/F1.2,PAL,120°, DC12V

Waterproof, Night Vision

20M extend cable with 4 PIN lock connector

Emark Certification is available;

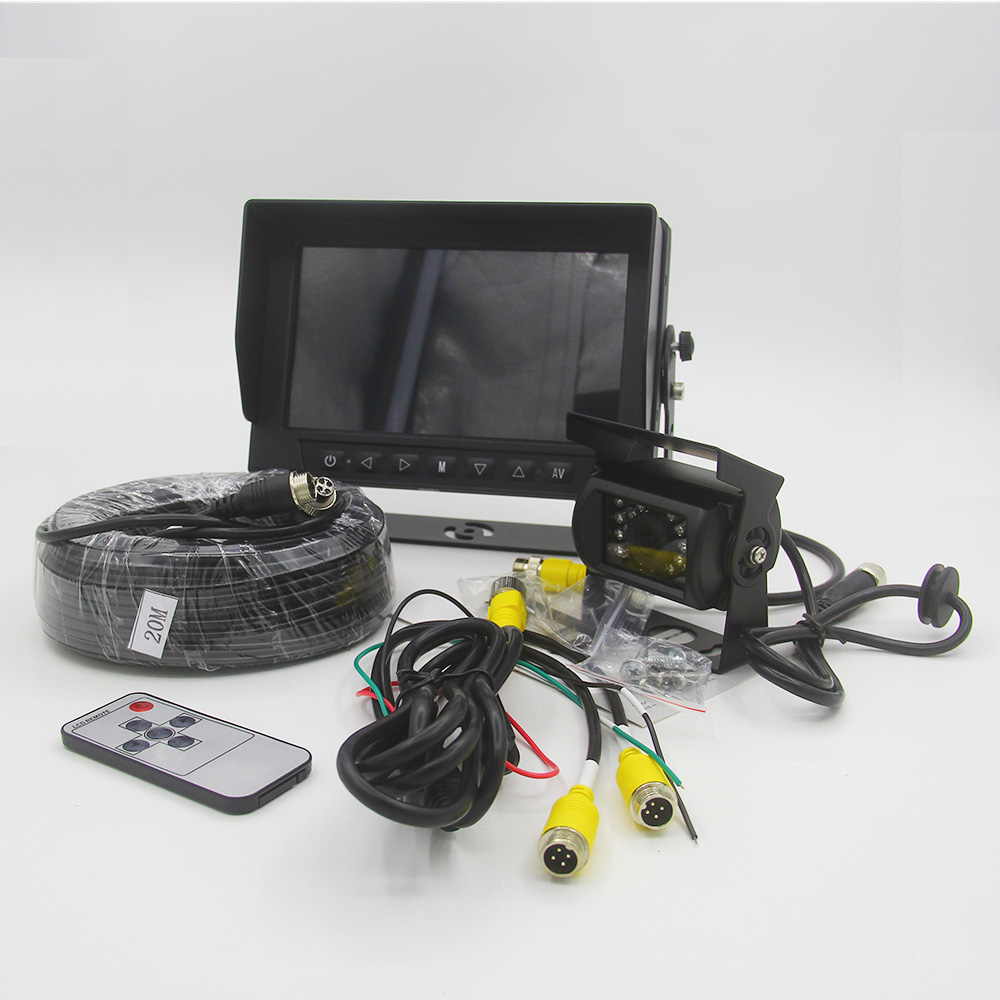

This Set is include1pc 7 inch IP69K Waterproof car monitor+1pc Back Camera+1pc 20m cable

Hits: 【Print】
Pre:7 Inch IP69K Waterproof Quad Monitor and Camera System     Next:7-inch AHD 1080P Split-Screen Camera System

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
