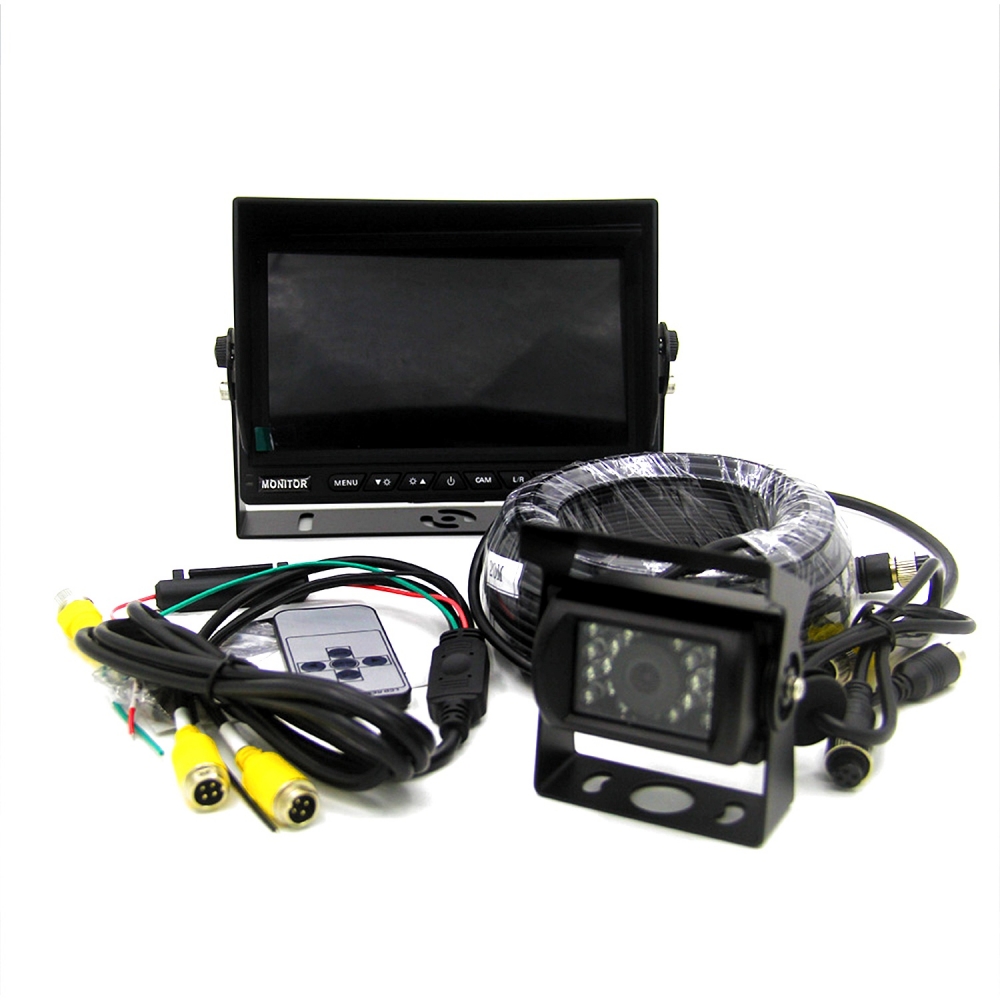

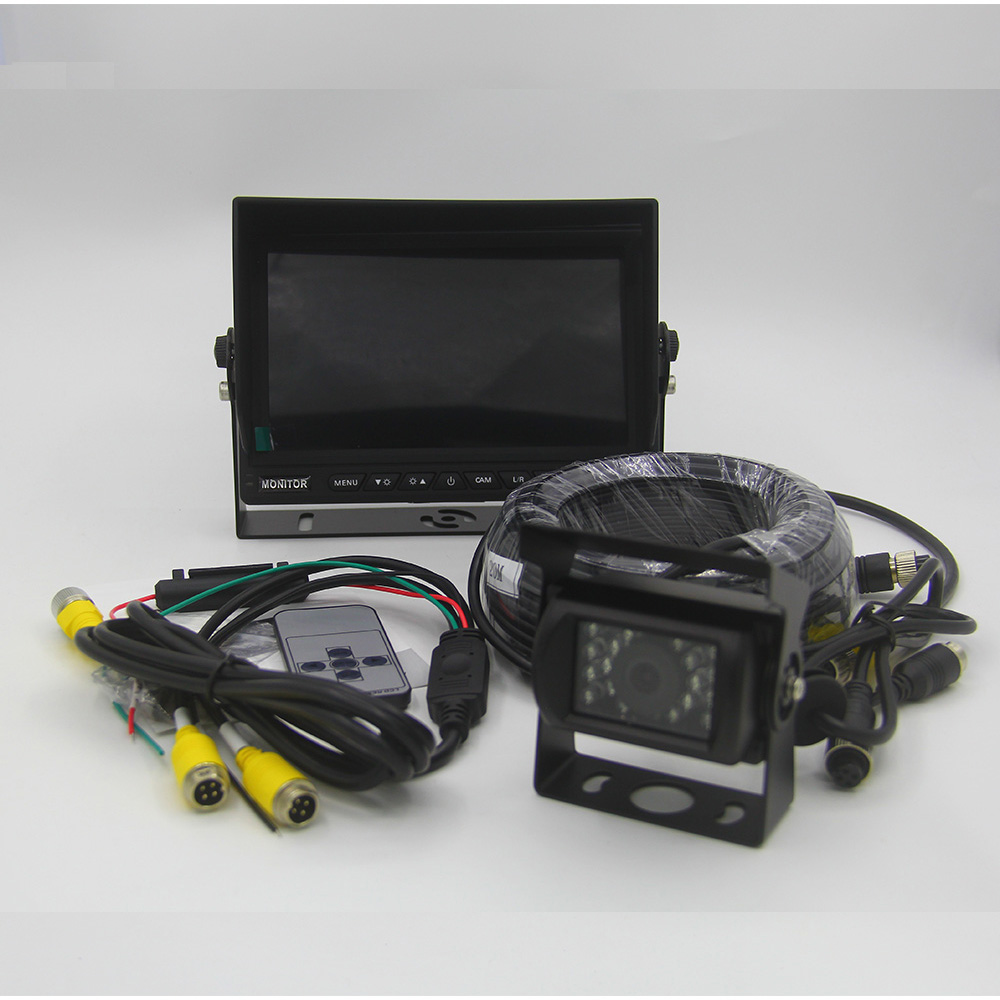

Name:7" 1080P AHD CAMERA KIT
Model No.:RVM-7003AHD
Product Name:7" 1080P AHD CAMERA KIT
Camera:AHD 1080P Camera, Night Vision, Waterproof
Cable:20M Extension cable with 4-PIN
Emark Certification:Available

Key Features:


DC12V&36V 7" 1080P AHD CAMERA KIT


The System ModelRVM-7003AHD
Car Monitor (FA-700AHD)
Color LCD screen7-inch IPS screen, with removable sunshade
Resolution1024xRGBx600
Aspect ratio16:9 Wide Screen
Video input2 way AHD video input( 3 ways optional), Video Compatibility: CVBS/ AHD
Picture modeSingle Image Display
Color systemPAL/NTSC (AUTO)
Brightness(cd/m2)650cd/m2
OSD Language

English, Chinese

SpeakerBuilt-in
View AngleHor. L(85°) R(85°)  Ver. UP(85°) DOWN(85°)
Parking LineBuilt-in Parking lines adjustment, adjusting according to the vehicle width
Working voltageInput Power: DC12V-36V, Output Power: DC12V
Working temperature-20ºC to +70ºC
Storage temperature-30ºC to +80ºC
Built-in light sensorAdjust the screen brightness automatically
Dimensions180x121x26mm
Others

Built-in lightning protection device; Monitor with reverse polarity protects.

Automatically switch to V2 when reversing.

AccessoriesRemote controller, Power supply cable, User manual, U Shape Bracket
Car Camera(CA-103AHD)
 Image sensor1/3"  2.0MP CMOS Sensor
Effective pixels1920(H) X 1080(V)
Horizontal resolution1080P
Viewing angle120°
Infrared distance5 meters
IR LED18pcs
Waterproof ratingIP68K
Working voltageDC12V
Working temperature-20ºC to +60ºC
Storage temperature-30ºC to +70ºC
Shockproof   Level4G
Extension Cable(C-001-20M)
Interface4 core aviation male and female connectors
Length20 meters



Hits: 【Print】
Pre:7″ Wireless Single Reversing Camera Kit     Next:10.1 Inch Car VGA LCD Monitor

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
