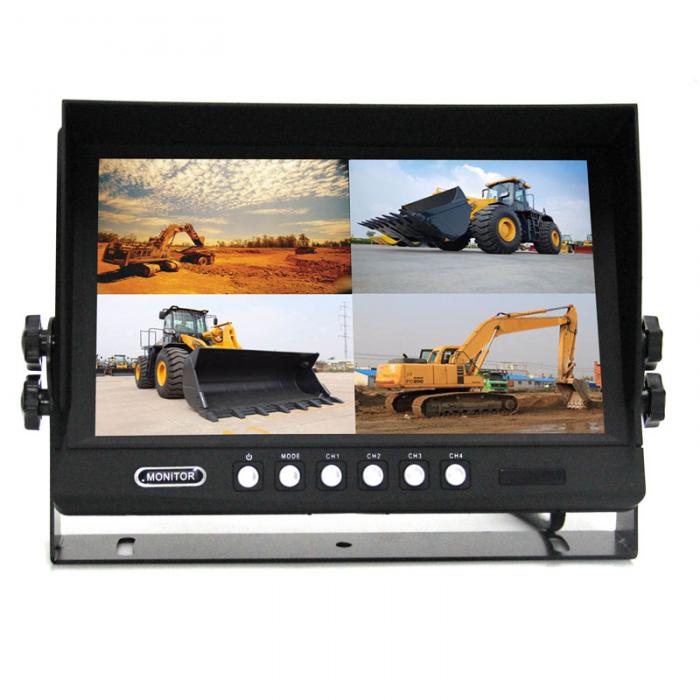

9 inch CVBS car monitor with quad 9 inch CVBS car monitor with quad
Name:9 inch CVBS car monitor with quad
Model No.:FA-901Q
Screen Size:9 Inch Car LCD QUAD Monitor
Aspect Ratio:16:9
Resolution:800xRGBx480 (1024X600 IPS HD Screen optional)
Video Input:4 Way Input
Speaker:Optional
System:PAL& NTSC
Remote Control:Yes
Power Supply:Input Power: DC12V-36V, Output Power: DC12V
Bracket:U shade Bracket
Trigger:4Ways
Size:230x155x27mm

Key Features:


9 inch CVBS car monitor with quad

FA-901Q Specifications:

9 Inch Car Quad Monitor

Aspect ratio: 16:9 Wide Screen
High Resolution:800xRGBx480 (1024X600 IPS HD Screen optional)
Back Light luminance: 350cd/m2
4-way video inputs
4 ways Trigger function, Trigger priority: CH2>CH1>CH3>CH4
Support 4 cameras video simultaneous input
Power Supply: Input Power: DC12V-36V, Output Power: DC12V
System: NTSC & PAL (automatically)
OSD Language: English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese
Image reversion:UP/Down and Left/Right
The monitor can be set as four kinds of view modes: single, dual, triple, or quad.
With UN-Removable Sunshade design, With Metal U Shape Bracket
Built-in Speaker(optional)
Material: ABS
View Angle: Hor. L(70) R(70)  Ver. UP(50) DOWN(70)
Storage temperature: -30°C ~80°C
Working temperature:-20°C ~ 70°C
Power consumption: 5W
Size: 230x155x27mm

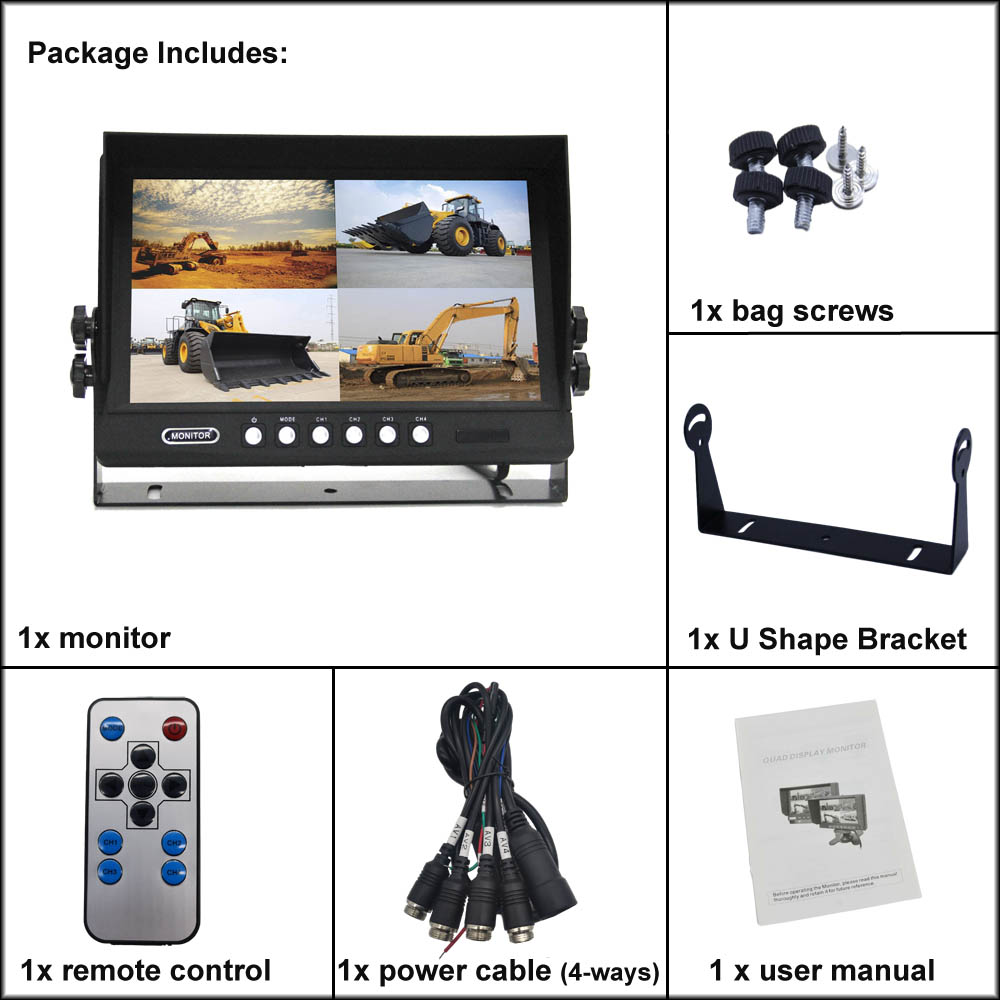

Accessories: Remote controller, Power supply cable, User manual, Bracket
Connector: 4-Pin Connector/RCA Connector optional



Hits: 【Print】
Pre:9 Inch Heavy Duty QUAD Color Monitor     Next:10.1 Inch Vehicle Monitor

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
