9 Inch Heavy Duty QUAD Color Monitor 9 Inch Heavy Duty QUAD Color Monitor 9 Inch Heavy Duty QUAD Color Monitor 9 Inch Heavy Duty QUAD Color Monitor

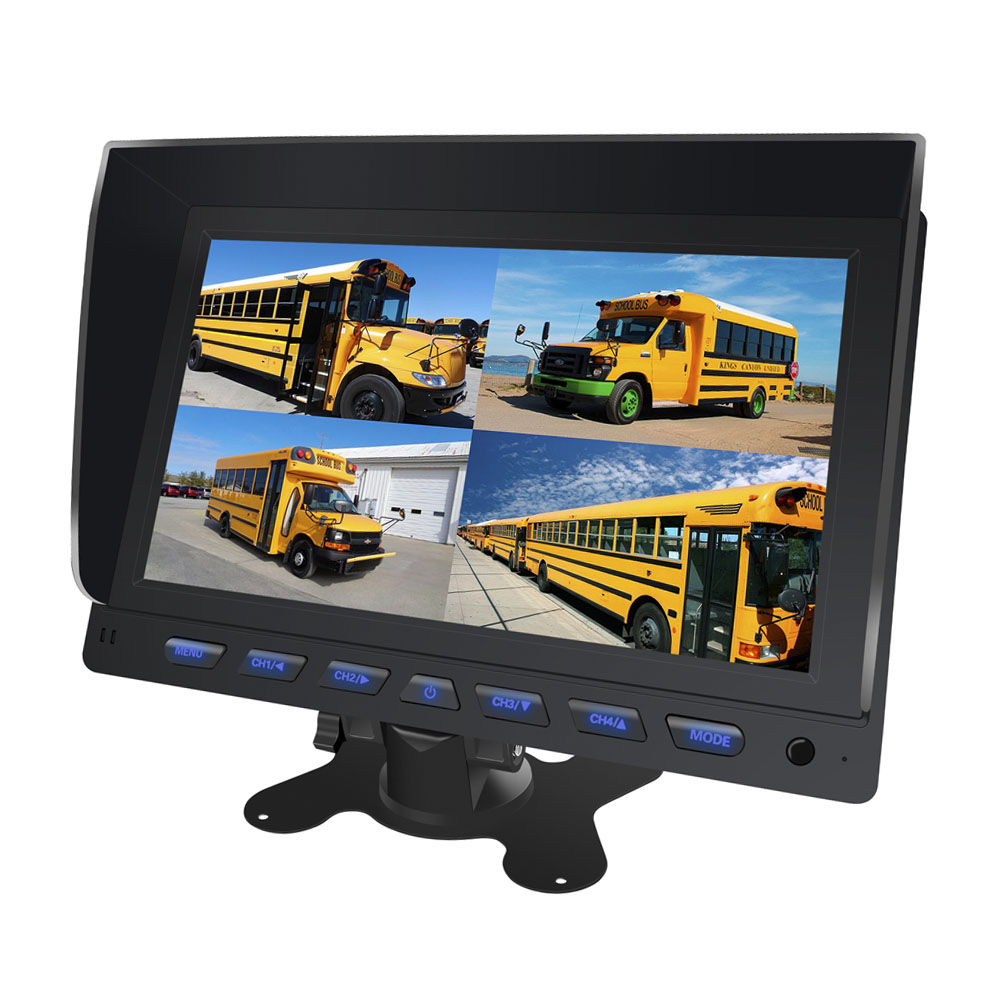

Name:9 Inch Heavy Duty QUAD Color Monitor
Model No.:FA-900Q
Screen Size:9 Inch Color Quad Monitor
Aspect Ratio:16:9
Resolution:1024X600 IPS HD Screen
Video Input:4 Way Input
System:PAL& NTSC
Remote Control:Yes
Power Supply:Input Power: DC12V-36V, Output Power: DC12V
Bracket:U shade Bracket

Key Features:

9 Inch Heavy Duty QUAD Color Monitor

FA-900Q Specifications:

9 Inch Car Quad Monitor
Aspect ratio: 16:9 Wide Screen
High Resolution:1024X600 IPS HD Screen
Back Light luminance: 400cd/m2
4 way video inputs
4 ways Trigger function, Trigger priority:CH2>CH1>CH3>CH4
Support 4 cameras video simultaneous input
Power Supply: Input Power: DC12V-36V, Output Power: DC12V
System: NTSC & PAL (automatically)
OSD Language: English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese
Image reversion:UP/Down and Left/Right
Monitor can be set as four kinds of view modes: single, dual, triple or quad.
Built-in Parking lines adjustment, adjusting according to vehicle width
With Removable Sunshade design, With Metal U Shape Bracket
Built-in lightning protection device; Monitor with reverse polarity protects;
Built-in Speaker(optional)
Material: ABS
View Angle: Hor. L(70) R(70)  Ver. UP(50) DOWN(70)
Storage temperature: -30°C ~80°C
Working temperature:-20°C ~ 70°C
Power consumption: 5W
Accessories: Remote controller, Power supply cable, User manual, Bracket
Connector: 4-Pin Connector/RCA Connector optional

Hits: 【Print】
Pre:7" IP69K Waterproof AHD Quad Dash Mount Monitor(4 Camera Inputs)     Next:9 inch CVBS car monitor with quad

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
