7 Inch Rearview Car AHD Monitor 7 Inch Rearview Car AHD Monitor 7 Inch Rearview Car AHD Monitor

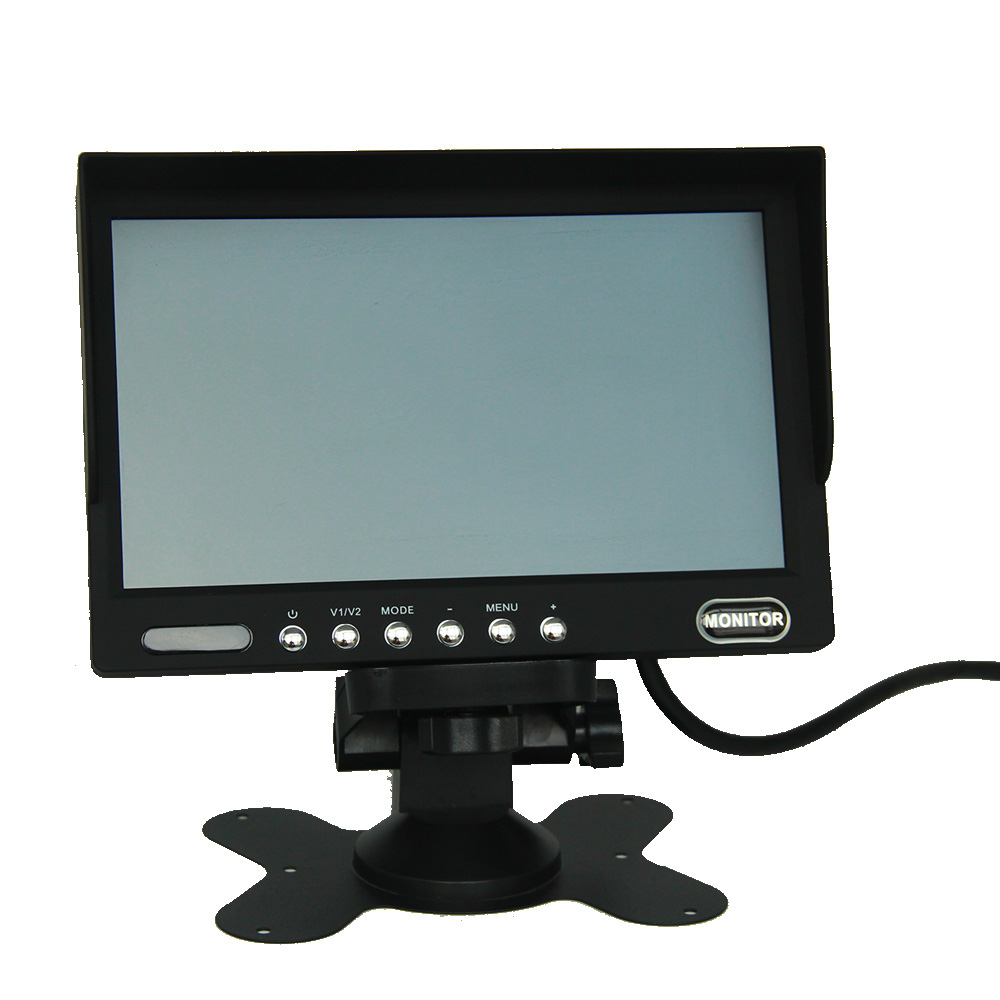

Name:7 Inch Rearview Car AHD Monitor
Model No.:FA-759AHD
Screen Size:7 Inch Rearview Car AHD Monitor
Aspect Ratio:16:9
Resolution:1024xR.G.Bx600
Video Input:2 Way Input
Speaker:optional
System:PAL& NTSC(auto)
Remote Control:Yes
Power Supply:Input Power: DC12V-36V, Output Power: DC12V
Bracket:Butterfly Shape Bracket
Connector:RCA or 4-PIN
Warranty:1 Year

Key Features:


DC12-24V 7 Inch Rearview Car AHD Monitor

FA-759AHD Features:

This 7 Inch Rearview Car AHD Monitor with unremovable sunshade.

Mounts to the dashboard with ease.

Support 2 camera inputs, and switch to view CH1/CH2 display.

Power Operation Voltage: DC12-24 volts.

Suitable for 4WDs, Motorhomes, Horse Trailers, RVS, Trucks, Buses & Heavy Machinery etc.


Car Monitor (FA-759AHD)
Color LCD screen7-inch IPS screen, with unremovable sunshade
Resolution1024xRGBx600
Aspect ratio16:9 Wide Screen
Brightness(cd/m2)500cd/m2
Video input2-way video input, Video Compatibility: CVBS/ AHD
Picture modeSingle Image Display
Color systemPAL/NTSC (AUTO)
OSD Language

English, Chinese

SpeakerOptional
View AngleHor. L(85°) R(85°)  Ver. UP(85°) DOWN(85°)
Parking LineBuilt-in Parking lines adjustment, adjusting according to the vehicle width
Working voltageInput Power: DC12V-36V, Output Power: DC12V
Power consumption5W
Working temperature-20ºC to +70ºC
Storage temperature-30ºC to +80ºC
Built-in light sensorAdjust the screen brightness automatically
Dimensions172x115x24mm
Others

Built-in lightning protection device; Monitor with reverse polarity protects.

Automatically switch to V2 when reversing.

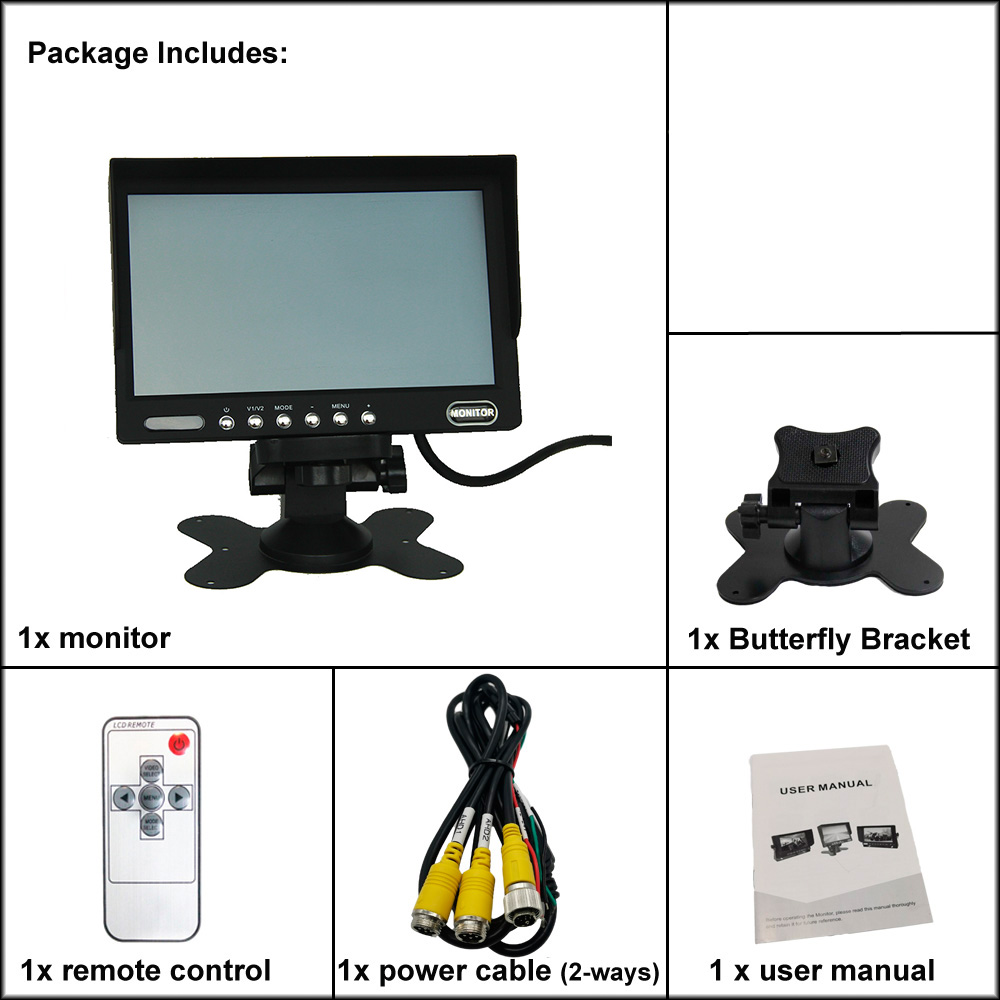

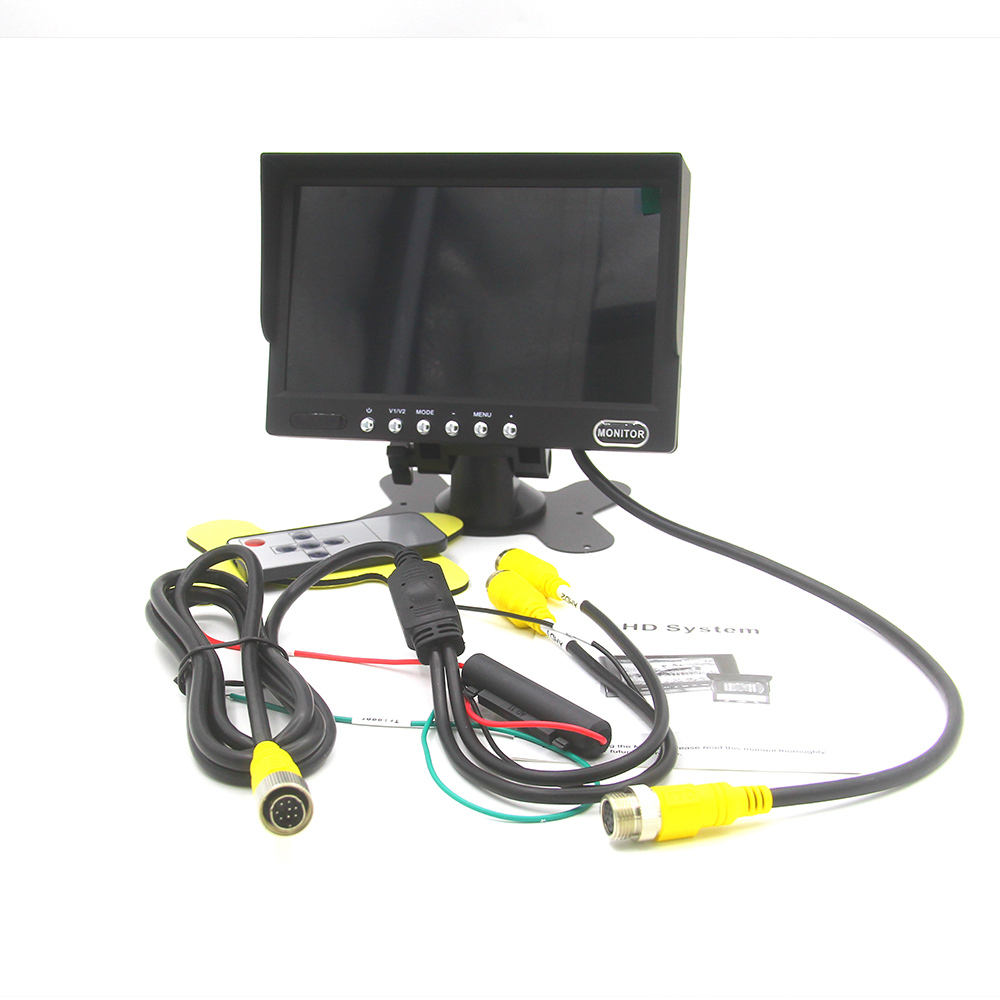

AccessoriesRemote controller, Power supply cable, User manual, Butterfly Shape Bracket







Hits: 【Print】
Pre:7 Inch Car AHD 1080P Reverse Monitor     Next:7 Inch AHD 1080P Quad LCD Widescreen Monitor

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
