Truck Side View Camera Truck Side View Camera Truck Side View Camera Truck Side View Camera

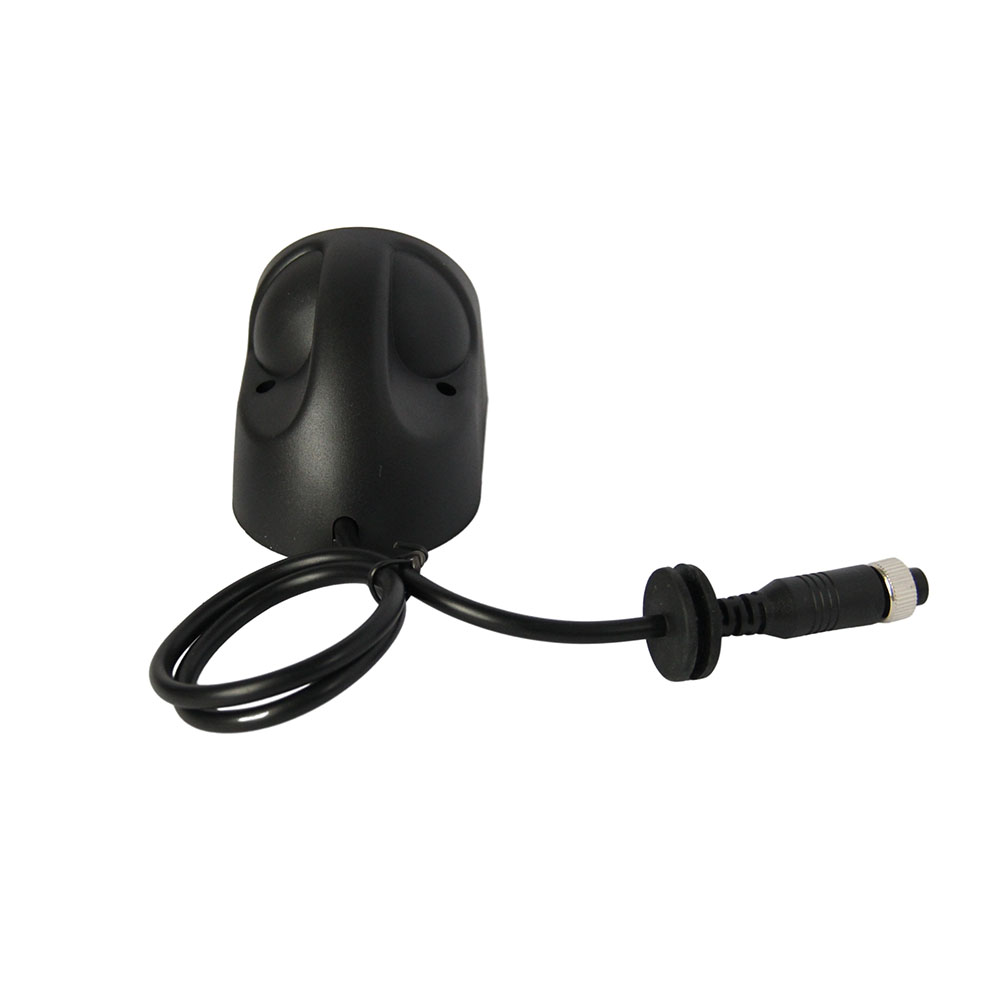

Name:Truck Side View Camera
Model No.:CA-108
Sensor:1/3 Sony CCD
TV Line:480TVL
Resolution:PAL:582(H)x510(V) NTSC: 510(H)x492(V)
Min illumination:0.01Lux (0 Lux IR on)
IR LED:10pcs
Night Vision Distance:about 5M
Waterproof:IP68
View Angle:120°
Lens:2.8mm
Power Voltage:DC12V or DC12V-24V
Material:ABS+PC
Warranty:1 year

Key Features:


CA-108 is a heavy duty Sony CCD Side camera suitable for caravans, trucks, buses and commercial use vehicles.

Specification:720P AHD1080P AHD 480TVL CVBS600TVL   CVBS 700TVL   CVBS
Image sensor:1/3"  1.0MP CMOS Sensor1/3"  2.0MP CMOS Sensor  1/4   480TVL SONY CCD1/3   600 TVL SONY CCD1/3   700 TVL SONY CCD
Effective  Pixel:NTSC/PAL   1280(H)*720(V) 100WNTSC/PAL   1920(H)*1080(V) 200WPAL:582(H)*510(V)   NTSC:510(H)*492(V)PAL:752(H)*582(V)    NTSC:768(H)*494(V)PAL:752(H)*582(V)  NTSC:768(H)*494(V)
Illuminance:0.011Lux/F1.2,Infrared   night vision0.011Lux/F1.2,Infrared   night vision0.01Lux   (0 Lux IR on)0.01Lux   (0 Lux IR on)0.01Lux   (0 Lux IR on)
CDS night   version change:Change   to black and white image
     automatically in the night
Change   to black and white image
     automatically in the night
Change   to black and white image
     automatically in the night
Change   to black and white image
     automatically in the night
Change   to black and white image
     automatically in the night
Hori zontal   Resolution:1.0Megapixel/720P2.0Megapixel/1080P 480   TVL600   TVL700   TVL
Image:Mirror or Non-mirror   optionalMirror or Non-mirror   optionalMirror or Non-mirror   optionalMirror or Non-mirror   optionalMirror or Non-mirror   optional
S/N Ratio:39db(TYP)69db(MAX)(AGC   OFF)39db(TYP)69db(MAX)(AGC   OFF)             ≥48dB≥50dB≥50dB
Electronic   Shutter:Auto   1/25(30)-1/50,000Auto   1/25(30)-1/50,000       1/50-1/10000(S)       1-1/10000(S)       1-1/10000(S)
System: PAL/NTSC optional PAL/NTSC optional          PAL/NTSC         PAL/NTSC         PAL/NTSC
Video Output:AHD Video(720P)AHD Video(1080P)      1.0V±0.5Vp-p 75Ω 1.0V±0.5Vp-p   75Ω 1.0V±0.5Vp-p   75Ω
Waterproof   Level:IP68IP68                IP68              IP68              IP68
View Angle:120°(2.8mm   lens)120°(2.8mm   lens)120°(2.8mm   lens)120°(2.8mm   lens)120°(2.8mm   lens)
Lens2.5/2.8/3.6mm   optional2.5/2.8/3.6mm   optional2.5/2.8/3.6mm   optional2.5/2.8/3.6mm   optional2.5/2.8/3.6mm   optional
Shockproof   Level:4G4G4G4G4G
Power   Consumption<3W<3W<3W<3W<3W
Maximum Current<250mA<250mA<250mA<250mA<250mA
Power SupplyDC 12V or 24V   optionalDC 12V or 24V   optionalDC 12V or 24V   optionalDC 12V or 24V   optionalDC 12V or 24V   optional
Connector:4PIN or RCA optional4PIN or RCA optional4PIN or RCA optional4PIN or RCA optional4PIN or RCA optional
MicrophoneOptionalOptionalOptionalOptionalOptional
ColorBlack/White OptionalBlack/White OptionalBlack/White OptionalBlack/White OptionalBlack/White Optional
