7-Inch AHD 1080P TFT Digital Monitor With Removable Sun Visor - 3CH Input
Name:7-Inch AHD 1080P TFT Digital Monitor With Removable Sun Visor - 3CH Input
Model No.:FA-701AHD
Screen Size:7 Inch Digital AHD Monitor
Aspect Ratio:16:9
Resolution:1024xRGBx600
Video Input:3 Way AHD Video Input
Speaker:Built-in
System:PAL& NTSC(auto)
Remote Control:Yes
Power Supply:Input Power: DC12V-36V, Output Power: DC12V
Bracket:U Shape Bracket
Connector:RCA or 4-PIN
Warranty:1 Year

Key Features:


DC12-36V  7-Inch AHD 1080P TFT Digital Monitor With Removable Sun Visor - 3CH Input

FA-701AHD Features:

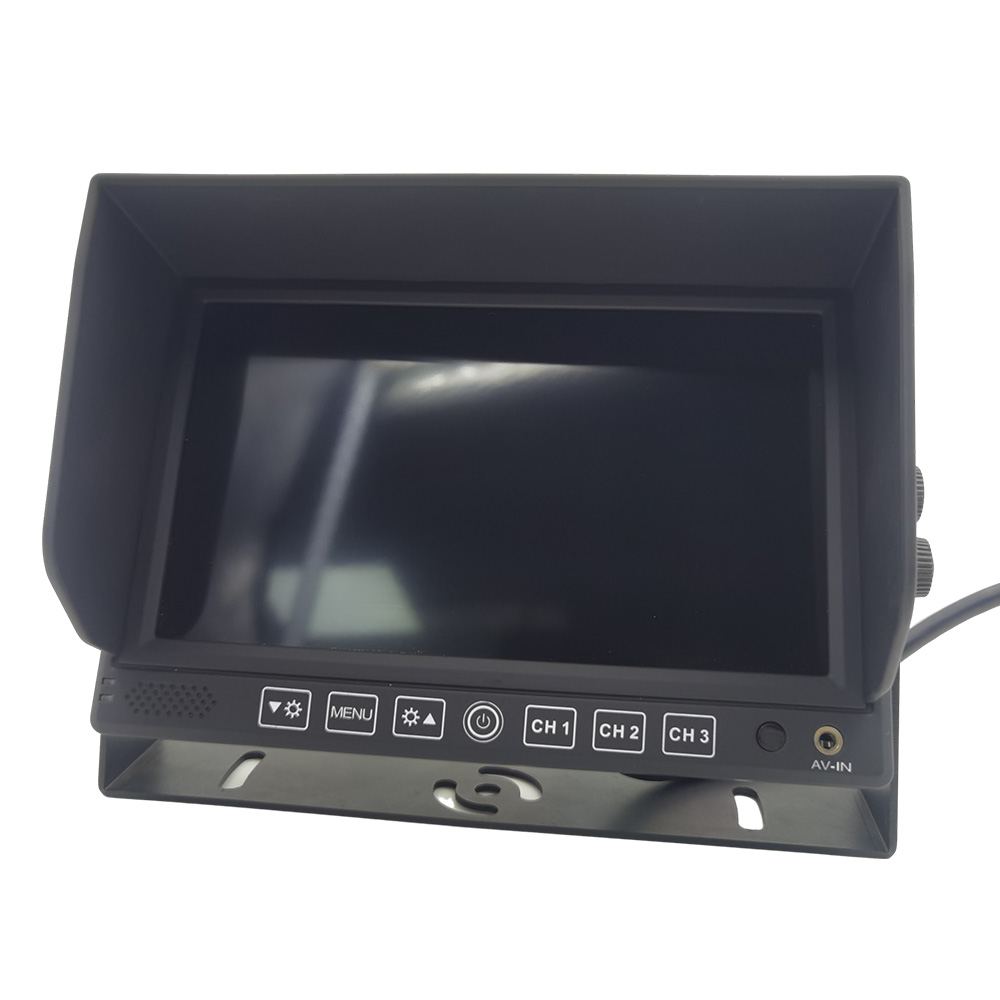

The 7″ monitor with removable sunshade

Mounts to the dashboard with ease

Support 3 camera inputs, and switch to view CH1/CH2/CH3 display.

This monitor has audio functionality

Power Operation Voltage: DC12-24 volts

Suitable for 4WDs, Motorhomes, Horse Trailers, Trucks, Buses & Heavy Machinery etc.


Car Monitor (FA-701AHD)
Color LCD screen7-inch IPS screen, with removable sunshade
Resolution1024xRGBx600
Aspect ratio16:9 Wide Screen
Video input3-way video input, Video Compatibility: CVBS/ AHD
Picture modeSingle Image Display
Color systemPAL/NTSC (AUTO)
Brightness(cd/m2)650cd/m2
OSD Language

English, Chinese

SpeakerBuilt-in
View AngleHor. L(85°) R(85°)  Ver. UP(85°) DOWN(85°)
Parking LineBuilt-in Parking lines adjustment, adjusting according to the vehicle width
Working voltageInput Power: DC12V-36V, Output Power: DC12V
Power consumption5W
Working temperature-20ºC to +70ºC
Storage temperature-30ºC to +80ºC
Built-in light sensorAdjust the screen brightness automatically
Dimensions180x121x26mm
Others

Built-in lightning protection device; Monitor with reverse polarity protects.

Automatically switch to V2 when reversing.

AccessoriesRemote controller, Power supply cable, User manual, U Shape Bracket



Hits: 【Print】
Pre:7 Inch Digital TFT-LCD Car Reverse Monitor     Next:Color Car Back Up Camera

Packaging & Delivery

Packaging Details

Giftbox or White box Package

Delivery Time

Sample in 3-5 days, normal order completed in 2-3 weeks after receiving payment copy.
